Below is a gallery of photographs, taken during surveys, which show examples of asbestos containing materials.
Gallery
-

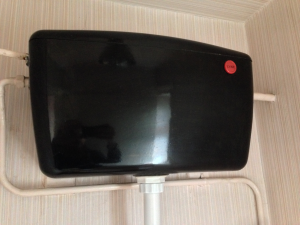

- Toilet cisterns of this style, can contain asbestos.
-

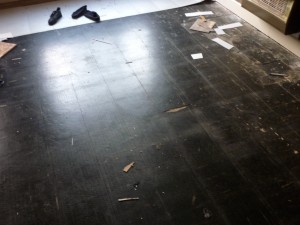

- Thermoplastic floor tiles, such as shown above, can contain asbestos. Asbestos was also used in the adhesive glue which was used to fit them.
-

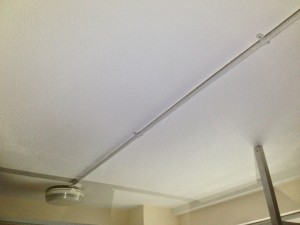

- Decorative finishes like this, can contain asbestos
-

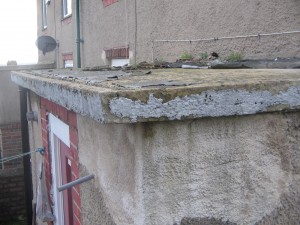

- Asbestos roof felt to external store, South Yorkshire.
-

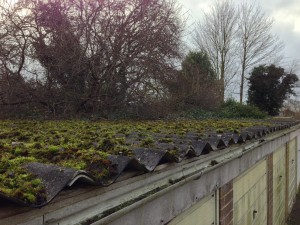

- Asbestos cement, corrugated roof sheets. Usually found to Garages, external stores etc. The fascia board is also asbestos cement.
-

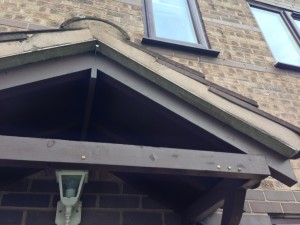

- Asbestos cement roof fillet. The grey board underneath the mortar is asbestos cement. Commonly found on properties until 1999.
-

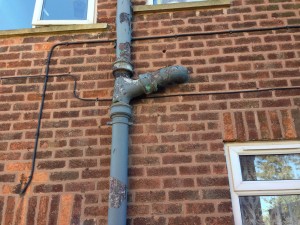

- Asbestos cement rain goods and gutters.
-

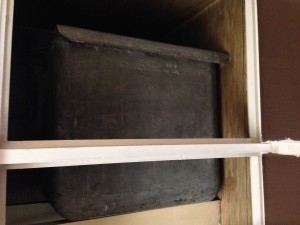

- Asbestos cement water tank, still commonly found in “Pit Houses”, usually in the Attic.
-

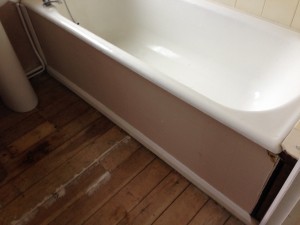

- Asbestos cement bath panel.
-

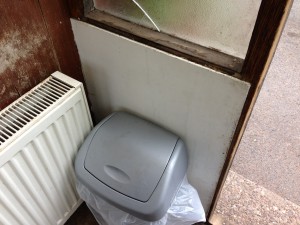

- Asbestos insulating board found as a low-level window panel. Particularly common to CLASP buildings.
-

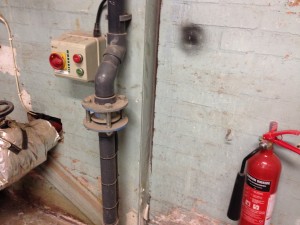

- Asbestos insulating board (AIB) column claddings/ liners. Found in the Plant Room of a Nottinghamshire Leisure Centre
-

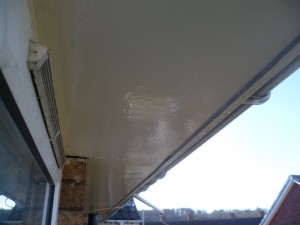

- Asbestos insulating board (AIB) soffit. Also very commonly found and usually either AIB or asbestos cement
-

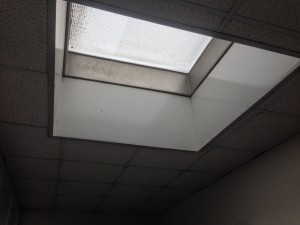

- Asbestos insulating board (AIB) as a skylight liner. Commonly found in office buildings, colleges, schools etc. of the CLASP era.
-

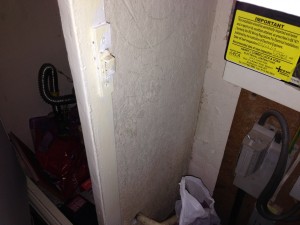

- Asbestos insulating board (AIB) to an electric cupboard. Found in a traditional terraced property, Netherfield, Nottingham
-

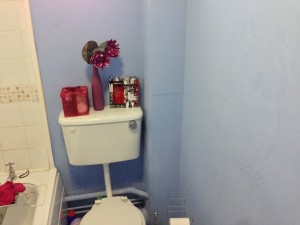

- The boxing around the pipework, right-hand-side of toilet, is asbestos insulating board (AIB). AIB was often used instead of timber or plasterboard during the 1960’s- mid 1980’s
-

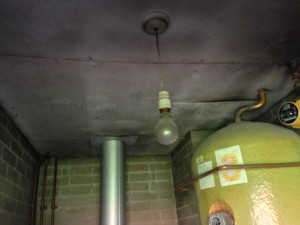

- Asbestos insulating board (AIB) used as ceiling panels to a Boiler room. Found to a small estate of residential bungalows, Nottingham.
-

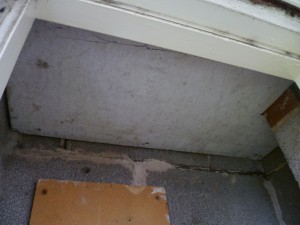

- Asbestos insulating board (AIB) to an external fuse/ electrical cupboard of a domestic property.
-

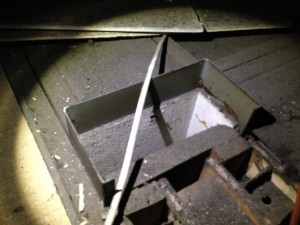

- Asbestos insulating board (AIB) lining columns or end-cappings. Metal casings have been used to encapsulate them, but the AIB remains within.
-

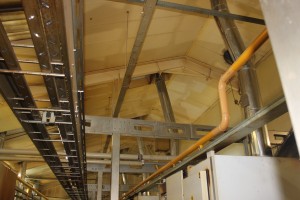

- Asbestos insulating board (AIB) used to under-line the roof to a Factory, in Nottingham
-

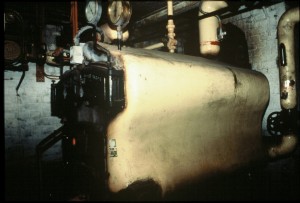

- Asbestos lagging to a boiler
-

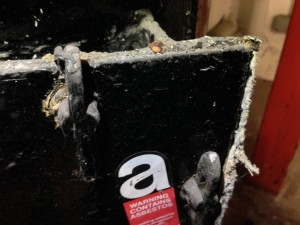

- Asbestos rope to flue pipe access.
-

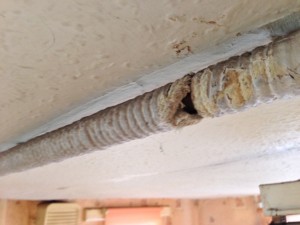

- This is asbestos rope around pipework. Found in the kitchen of a Leicestershire house
-

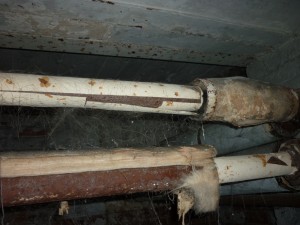

- Asbestos paper beneath non-asbestos pipework laggings
-

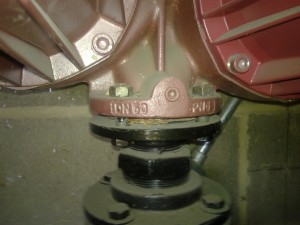

- Asbestos gaskets to pipework
